Seamless pipes or SMLS pipes are a fundamental part of various industries. The oil industry, Gas industry, power generation, chemical processing, and construction all use SMLS pipes. What makes SMLS pipes fundamental for all these industries is their strength, durability, and ability to withstand high pressure and temperature. These features are only present on the pipes when they are manufactured precisely by following the standards specified by the industry.
SMLS pipe manufacturing has different steps. The manufacturing of seamless pipes requires a deep understanding of engineering principles, material properties, and industry standards. This article will cover a brief overview of the basics of the SMLS Pipe Manufacturing Process.
What Is SMLS Pipe Design?
The design of SMLS pipes mainly focuses on the dimensions, material, and specifications of a pipe to meet the requirements of a specific application. Only Dimensions have a crucial role in measuring accuracy, consistency, and quality.
Welded pipes have a seam and that is the weak point in structure. SMLS pipes overcome this point. Removing the seam makes SMLS pipes stronger and more tolerant against high-pressure and high-temperature environments. The design process of SMLS pipes ensures that the pipe can handle the expected load, pressure, and environmental conditions while maintaining structural integrity.
Key Considerations in Seamless Pipe Design
1. Material Selection
The choice of ingredients during the manufacturing of seamless pipe design matters. The common ingredients are:
- Carbon Steel: Carbon steel makes it stronger and is also cheap. Carbon steel pipes are most likely to be used for oil and gas lines.
- Stainless Steel: Stainless steel is corrosion-resistant and can be used for marine pipelines and is also suitable for chemical processes.
- Alloy Steel: Alloy steel is temperature-resistant and it increases the strength of pipe, it is also used in power plants and refineries.
The selection of material is according to its respective properties. The pipe should be corrosion-resistant, temperature-tolerant, and strong.
2. Pipe Dimensions
Seamless pipes have dimensions, like outer and inner dimensions, and also a thickness of the wall. The pipe dimension is analyzed based on the following factors:
- Flow Requirements: During dimensional analysis, flow is an important factor in dimensions that should be fit for flows like gas or liquid.
- Pressure and Temperature: The pipe must be temperature resistant and can hold pressures without any damage.
- Mechanical Loads: It can hold mechanical weight like external impacts from the environment and it should also be able to hold its weight.
3. Pressure and Temperature Ratings
These pipes are designed for designs having high temperatures and pressure. So, these are well manufactured like:
- Maximum Allowable Pressure (MAWP): During manufacturing the weight is considered according to its best suitability.
- Temperature Limits: The temperature limit is considered so the pipes don’t damage in rough temperatures.
- Safety Factors: The pipes should be reliable and also made according to safety measures.
4. Stress Analysis
Due to multiple external pressures on pipes, stress analysis is an important factor for pipe manufacturing. Some of the stress is produced due to thermal expansion and external loads that are mentioned below:
- Hoop Stress: This type of stress is caused by internal pressure on the walls of the pipe.
- Axial Stress: This is caused by the pressure and weight on the pipe.
- Bending Stress: This is caused by any type of bending of pipes.
The stress analysis is important to increase the strength of the pipe and to measure weak points to protect them from external pressures.
5. Corrosion and Erosion Resistance

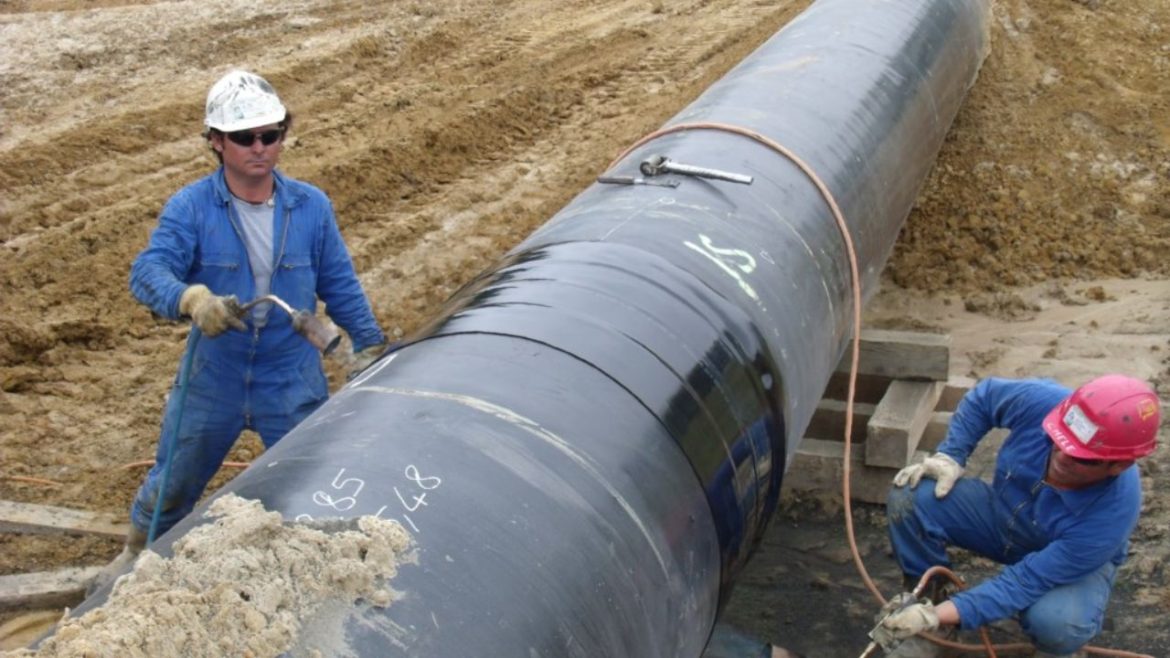

The pipes must be manufactured as corrosion and erosion-resistant in harsh and rough weather. These properties are obtained by Material Selection, Coatings and Linings, and Cathodic Protection.
6. Compliance with Standards
The design of the pipes must be according to the industry standards and codes that include:
- ASTM Standards: These are used for the specifications of material and testing.
- API Standards: The pipes that are used for oil and gas are according to API.
- ASME Boiler and Pressure Vessel Code: Pipes that are used in high-pressure situations.
This ensures that the pipe is according to safety measures and high performance.
Conclusion
The manufacturing process of SMLS pipes must be strictly in compliance with the rules and steps specified by the engineers or industries. Considering the industrial standards in designing seamless pipes engineers will definitely create a pipe that full fills the specified project requirement. Every individual who is involved in the designing of the SMLS pipes should follow the industrial standards because these pipes are the backbone of modern infrastructure industries.
